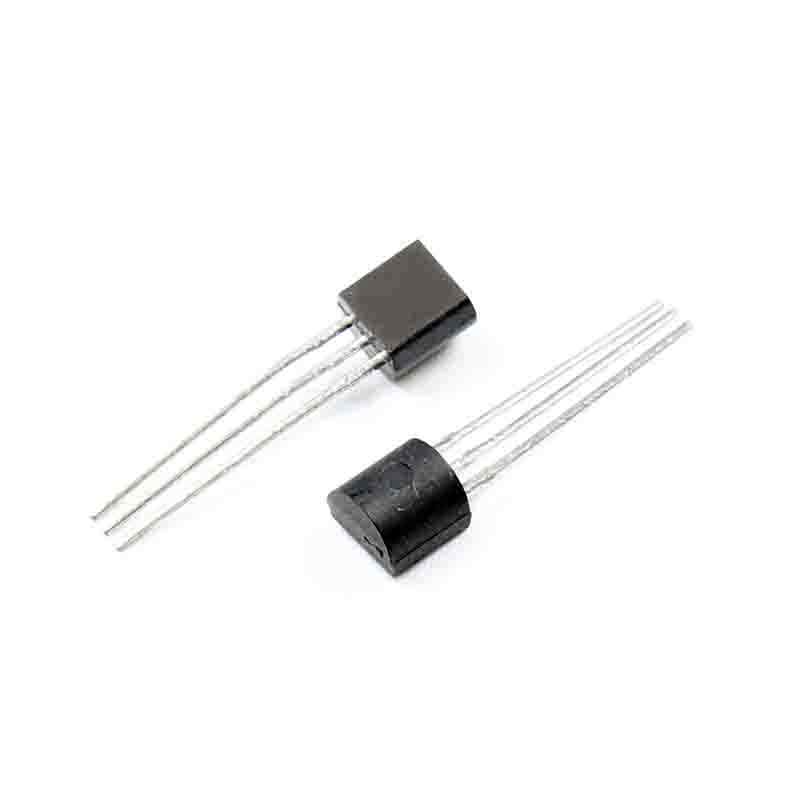

BC33740BU TO-92-3 TRANSISTOR NPN 45V 800MA TO-92

Brand: Fairchild Semiconductor

Product Code: #460307

Availability:In stock

$0.99 0.99

Qty

Ask about this product
BC33740BU DescriptionBC33740BU Datasheet
Transistor Type NPN
Current - Collector (Ic) (Max) 800mA
Voltage - Collector Emitter Breakdown (Max) 45V
Noise Figure (dB Typ @ f) -
Vce Saturation (Max) @ Ib Ic 700mV @ 50mA 500mA
Current - Collector Cutoff (Max) 100nA
Gain -
DC Current Gain (hFE) (Min) @ Ic Vce 250 @ 100mA 1V
Power - Max 625mW
Frequency - Transition 100MHz
Mounting Type Through Hole
Supplier Device Package TO-92-3
