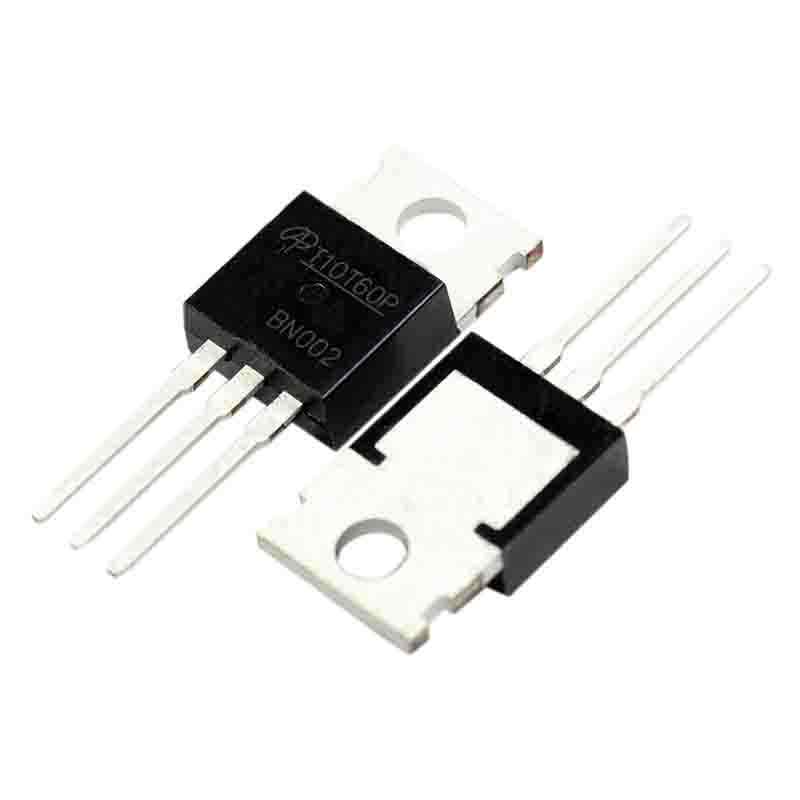

AOT10T60PL TO-220 MOSFET N-CH 700V 40A TO-220

Brand: Alpha & Omega Semiconductor Inc

Product Code: #1686231

Availability:In stock

$2.73 2.73

Qty

Ask about this product
AOT10T60PL DescriptionAOT10T60PL Datasheet
Compare Parts
Part Number 785-1694-5-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 600V
Current - Continuous Drain (Id) @ 25C 10A (Tc)
Rds On (Max) @ Id Vgs 700 mOhm @ 5A 10V
Vgs(th) (Max) @ Id 5V @ 250A
Gate Charge (Qg) @ Vgs 40nC @ 10V
Input Capacitance (Ciss) @ Vds 1595pF @ 100V
Power - Max 208W
Mounting Type Through Hole
