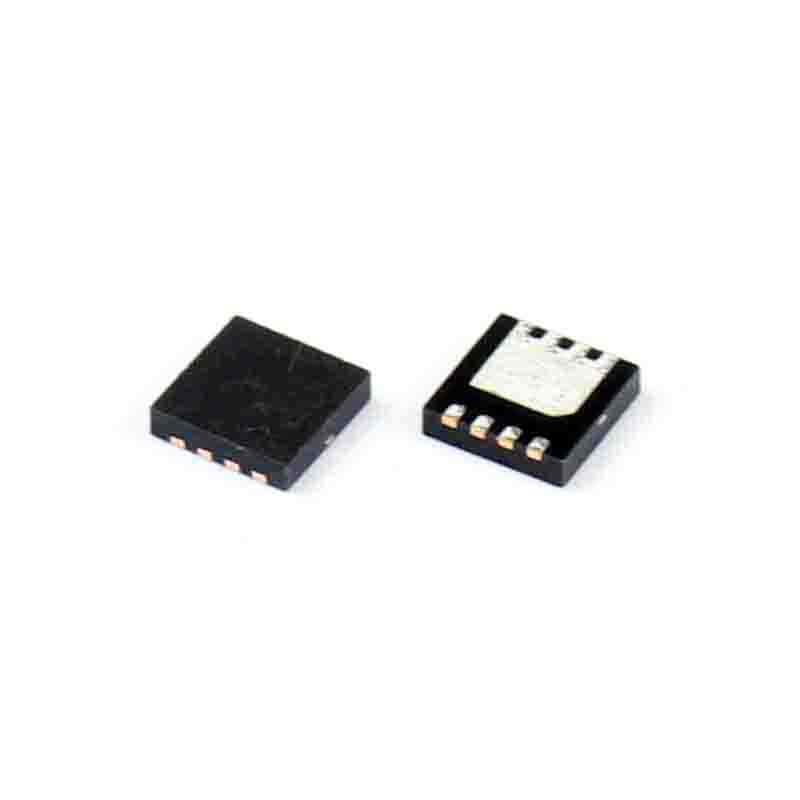

AON7784 8-DFN-EP (3.3x3.3) MOSFET N CH 30V 50A DFN3.3X3.3

Brand: Alpha & Omega Semiconductor Inc

Product Code: #571848

Availability:In stock

$1.59 1.59

Qty

Ask about this product
AON7784 DescriptionAON7784 Datasheet
FET Type MOSFET N-Channel Schottky Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 50A
Rds On (Max) @ Id Vgs 3.5 mOhm @ 20A 10V
Vgs(th) (Max) @ Id 2.1V @ 250?A
Gate Charge (Qg) @ Vgs 34nC @ 10V
Input Capacitance (Ciss) @ Vds 4600pF @ 15V
Power - Max 6.2W
Mounting Type Surface Mount
Supplier Device Package 8-DFN-EP (3.3x3.3)
