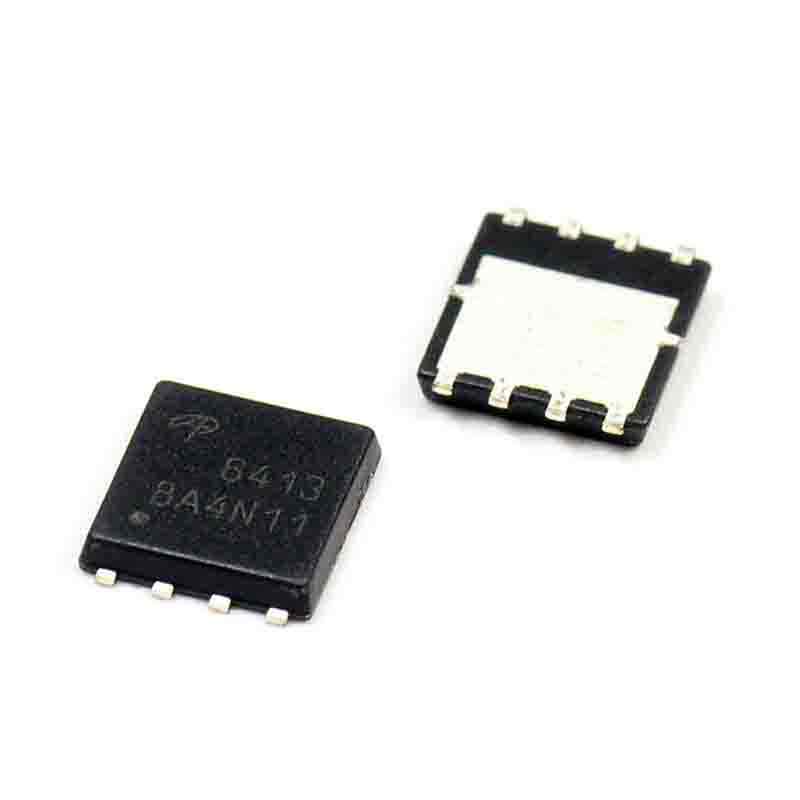

AON6413 8-DFN-EP (5x6) MOSFET P-CH 30V 22A 8DFN

Brand: Alpha & Omega Semiconductor Inc

Product Code: #1569514

Availability:In stock

$1.33 1.33

Qty

Ask about this product
AON6413 DescriptionAON6413 Datasheet
Compare Parts
Part Number 785-1668-2-ND
FET Type MOSFET P-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25C 22A (Ta) 32A (Tc)
Rds On (Max) @ Id Vgs 8.5 mOhm @ 16A 10V
Vgs(th) (Max) @ Id 2.7V @ 250A
Gate Charge (Qg) @ Vgs 58nC @ 10V
Input Capacitance (Ciss) @ Vds 2142pF @ 15V
Power - Max 6.2W
Mounting Type Surface Mount
