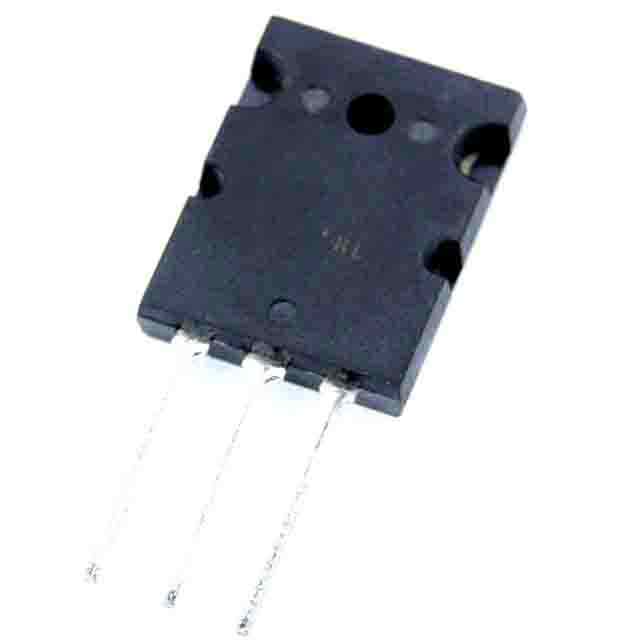

2SK2837 TO-3P(N) MOSFET N-CH 500V 20A TO-3PN

Brand: Toshiba

Product Code: #861221

Availability:In stock

$2.91 2.91

Qty

Ask about this product
2SK2837 Description2SK2837 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 500V
Current - Continuous Drain (Id) @ 25 C 20A
Rds On (Max) @ Id Vgs 270 mOhm @ 10A 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) @ Vgs 80nC @ 10V
Input Capacitance (Ciss) @ Vds 3720pF @ 10V
Power - Max 150W
Mounting Type Through Hole
Supplier Device Package TO-3P(N)
