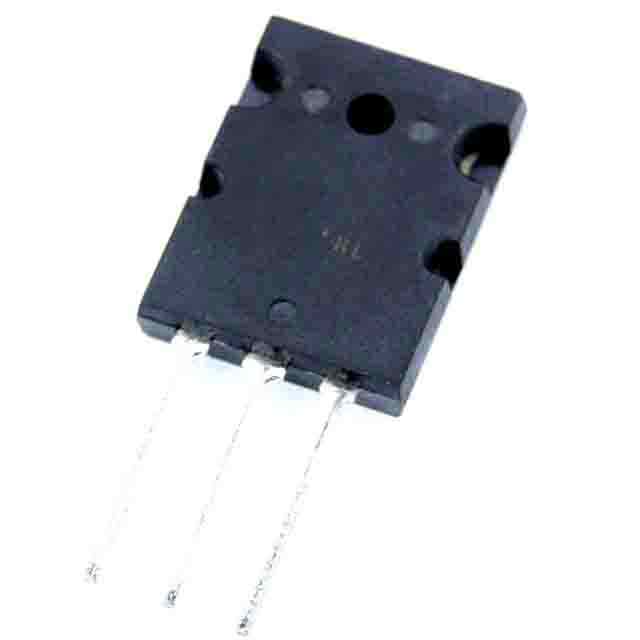

2SK2744 TO-3P(N) MOSFET N-CH 50V 45A TO-3PN

Brand: Toshiba

Product Code: #861204

Availability:In stock

$2.91 2.91

Qty

Ask about this product
2SK2744 Description2SK2744 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 50V
Current - Continuous Drain (Id) @ 25 C 45A
Rds On (Max) @ Id Vgs 20 mOhm @ 25A 10V
Vgs(th) (Max) @ Id 3.5V @ 1mA
Gate Charge (Qg) @ Vgs 68nC @ 10V
Input Capacitance (Ciss) @ Vds 2300pF @ 10V
Power - Max 125W
Mounting Type Through Hole
Supplier Device Package TO-3P(N)
