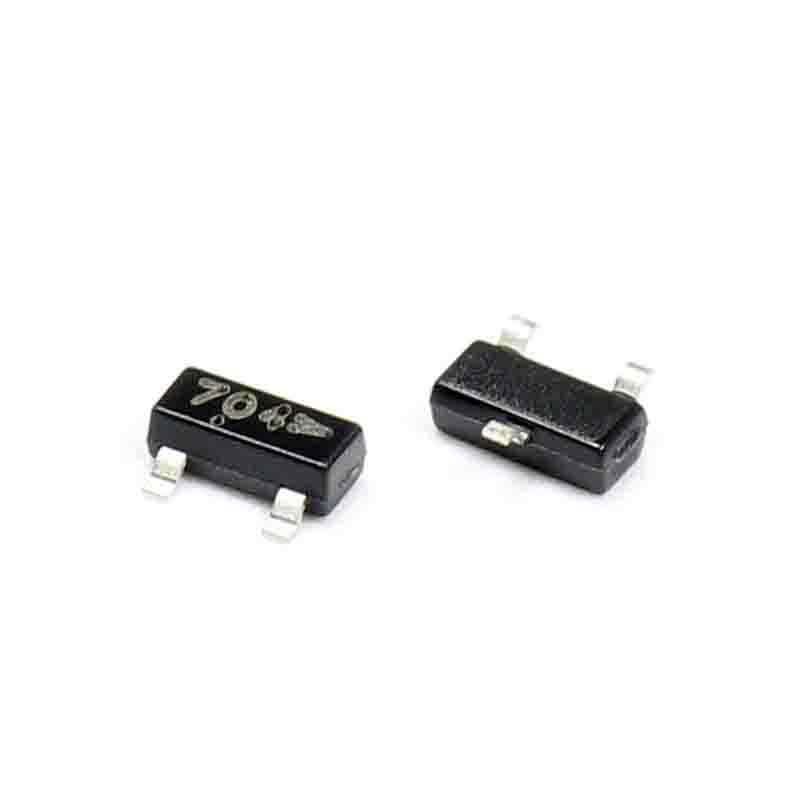

2N7002KT1G SOT-23-3 (TO-236) MOSFET N-CH 60V 320MA SOT-23

Brand: ON Semiconductor

Product Code: #438269

Availability:In stock

$0.45 0.45

Qty

Ask about this product
2N7002KT1G Description2N7002KT1G Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25 C 320mA
Rds On (Max) @ Id Vgs 1.6 Ohm @ 500mA 10V
Vgs(th) (Max) @ Id 2.5V @ 250?A
Gate Charge (Qg) @ Vgs 0.7nC @ 4.5V
Input Capacitance (Ciss) @ Vds 24.5pF @ 20V
Power - Max 300mW
Mounting Type Surface Mount
Supplier Device Package SOT-23-3 (TO-236)
