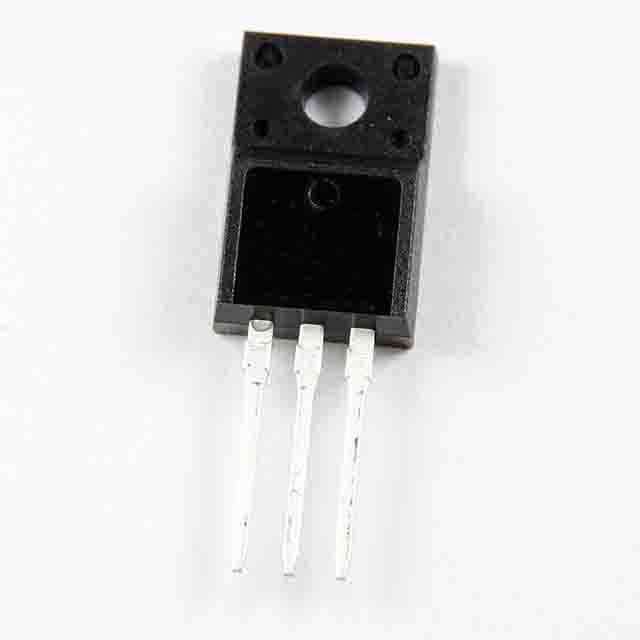

SPA11N60C3 PG-TO220-FP MOSFET N-CH 650V 11A TO220FP

Brand: Infineon Technologies

Product Code: #889567

Availability:In stock

$3.49 3.49

Qty

Ask about this product
SPA11N60C3 DescriptionSPA11N60C3 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 650V
Current - Continuous Drain (Id) @ 25 C 11A
Rds On (Max) @ Id Vgs 380 mOhm @ 7A 10V
Vgs(th) (Max) @ Id 3.9V @ 500?A
Gate Charge (Qg) @ Vgs 60nC @ 10V
Input Capacitance (Ciss) @ Vds 1200pF @ 25V
Power - Max 33W
Mounting Type Through Hole
Supplier Device Package PG-TO220-FP
