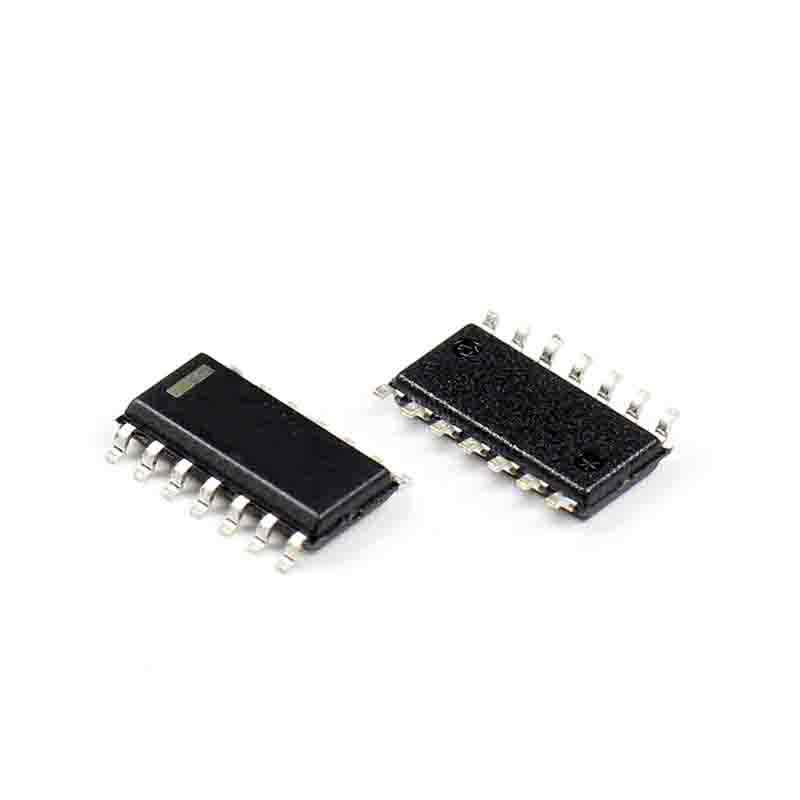

MC74HC132ADG - 14-SOICN - IC GATE NAND QUAD 2INP 14-SOIC

MC74HC132ADG 14-SOICN IC GATE NAND QUAD 2INP 14-SOIC

Brand: ON Semiconductor

Product Code: #372027

Availability:In stock

$1.76 1.76

Qty

Ask about this product
MC74HC132ADG DescriptionMC74HC132ADG Datasheet
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Features Schmitt Trigger
Voltage - Supply 2 V ~ 6 V
Current - Quiescent (Max) 1?A
Current - Output High Low 5.2mA 5.2mA
Logic Level - Low 0.3 V ~ 1.2 V
Logic Level - High 1.5 V ~ 4.2 V
Max Propagation Delay @ V Max CL 21ns @ 6V 50pF
Operating Temperature -55C ~ 125C
Mounting Type Surface Mount
Supplier Device Package 14-SOICN
