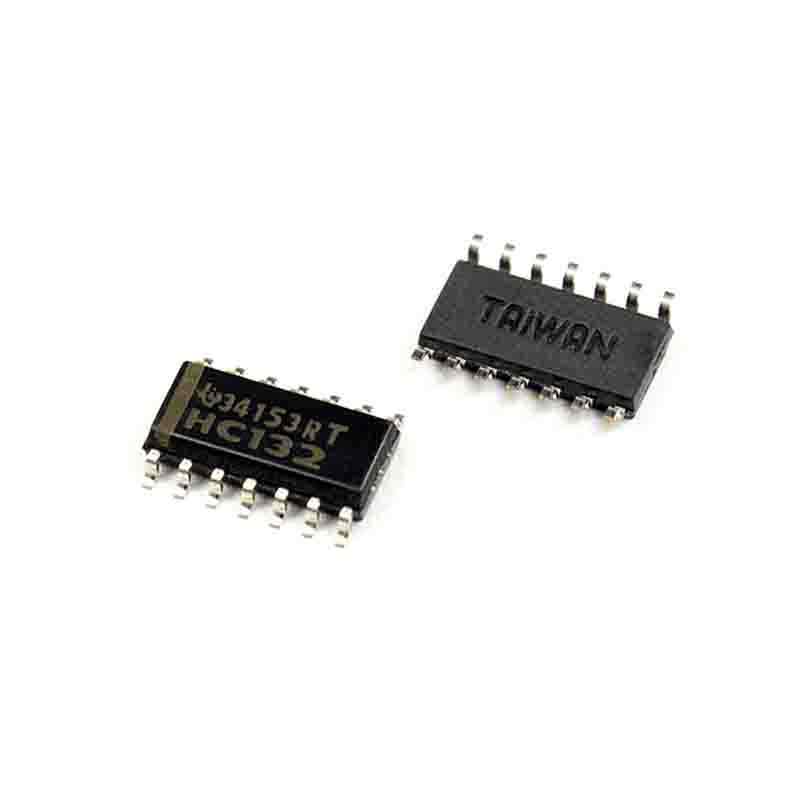

SN74HC132DR 14-SOIC IC QUAD POS-NAND GATE 14-SOIC

Brand: Texas Instruments

Product Code: #273949

Availability:In stock

$0.76 0.76

Qty

Ask about this product
SN74HC132DR DescriptionSN74HC132DR Datasheet
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Features Schmitt Trigger
Voltage - Supply 2 V ~ 6 V
Current - Quiescent (Max) 2?A
Current - Output High Low 5.2mA 5.2mA
Logic Level - Low 0.3 V ~ 1.2 V
Logic Level - High 1.5 V ~ 4.2 V
Max Propagation Delay @ V Max CL 21ns @ 6V 50pF
Operating Temperature -40C ~ 85C
Mounting Type Surface Mount
Supplier Device Package 14-SOIC
