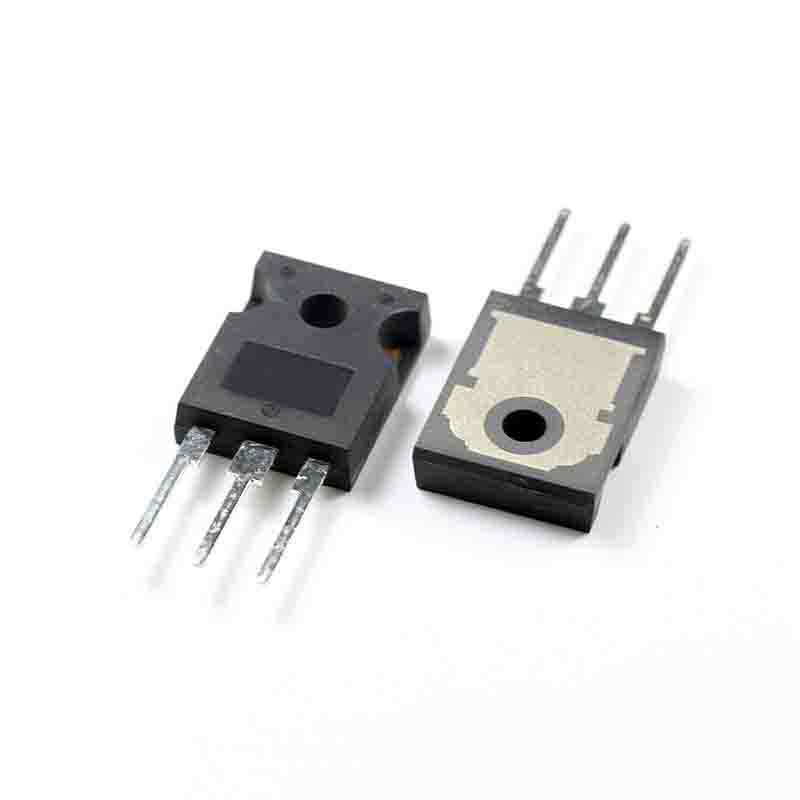

NGTB50N65FL2WG TO-247-3 IGBT 600V 50A TO247

Brand: ON Semiconductor

Availability:Out of stock

$0.00

Ask about this product

Description Reviews Shipment FAQs

NGTB50N65FL2WG Description Datasheet
Compare Parts
Part Number	NGTB50N65FL2WG-ND
IGBT Type	Trench and Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	100A
Current - Collector Pulsed (Icm)	200A
Vce(on) (Max) @ Vge Ic	2V @ 15V 50A
Power - Max	417W
Switching Energy	1.5mJ (on) 460J (off)
Input Type	Standard
Gate Charge	220nC
Td (on/off) @ 25C	100ns/237ns
Test Condition	400V 50A 10 Ohm 15V
Reverse Recovery Time (trr)	94ns
Mounting Type	Through Hole
