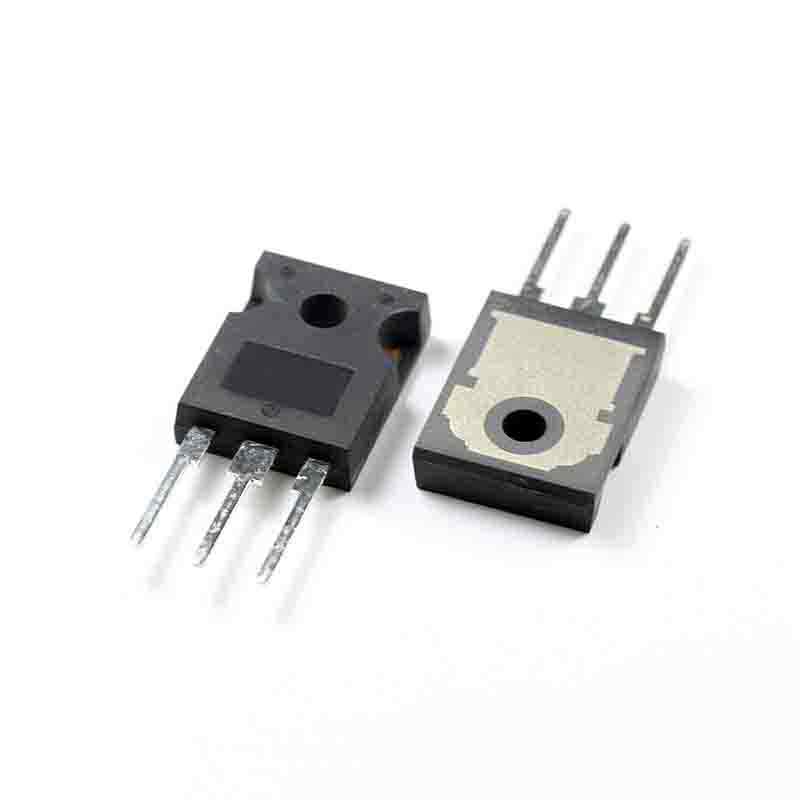

NGTB30N65IHL2WG TO-247-3 IGBT 600V 70A 300W TO247

Brand: ON Semiconductor

Availability:Out of stock

$0.00

Ask about this product

Description Reviews Shipment FAQs

NGTB30N65IHL2WG Description Datasheet
Compare Parts
Part Number	NGTB30N65IHL2WG-ND
IGBT Type	Trench and Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	60A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge Ic	2.2V @ 15V 30A
Power - Max	300W
Switching Energy	200J (off)
Input Type	Standard
Gate Charge	135nC
Td (on/off) @ 25C	-/145ns
Test Condition	400V 30A 10 Ohm 15V
Reverse Recovery Time (trr)	430ns
Mounting Type	Surface Mount
