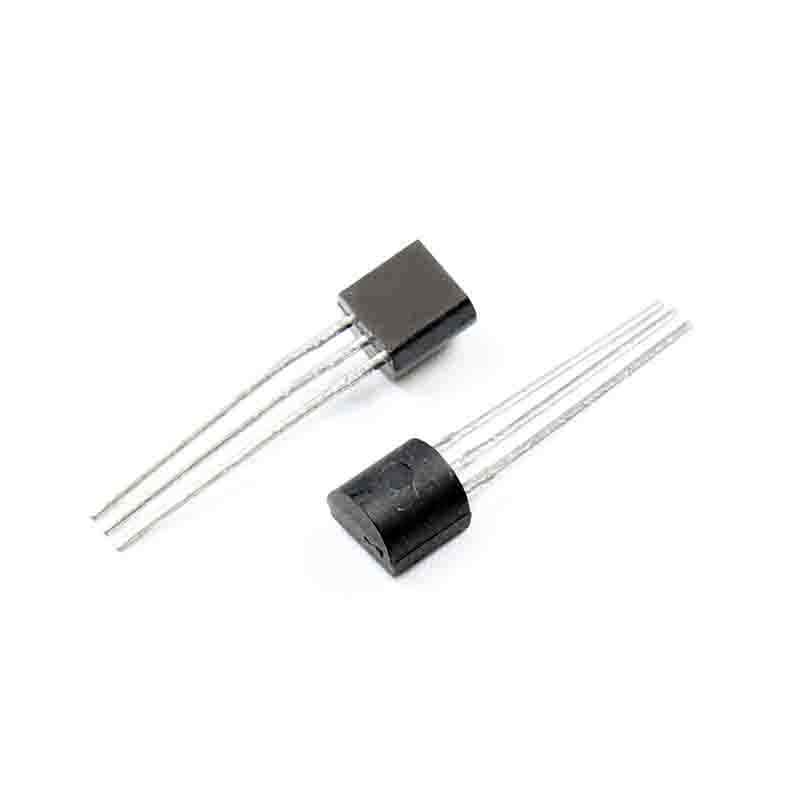

VN2460N3-G TO-92-3 MOSFET N-CH 600V 0.16A TO92-3

Brand: Microchip Technology

Product Code: #1569894

Availability:In stock

$2.69 2.69

Qty

Ask about this product
VN2460N3-G DescriptionVN2460N3-G Datasheet
Compare Parts
Part Number VN2460N3-G-ND
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 600V
Current - Continuous Drain (Id) @ 25C 160mA (Tj)
Rds On (Max) @ Id Vgs 20 Ohm @ 100mA 10V
Vgs(th) (Max) @ Id 4V @ 2mA
Gate Charge (Qg) @ Vgs -
Input Capacitance (Ciss) @ Vds 150pF @ 25V
Power - Max 1W
Mounting Type Through Hole
