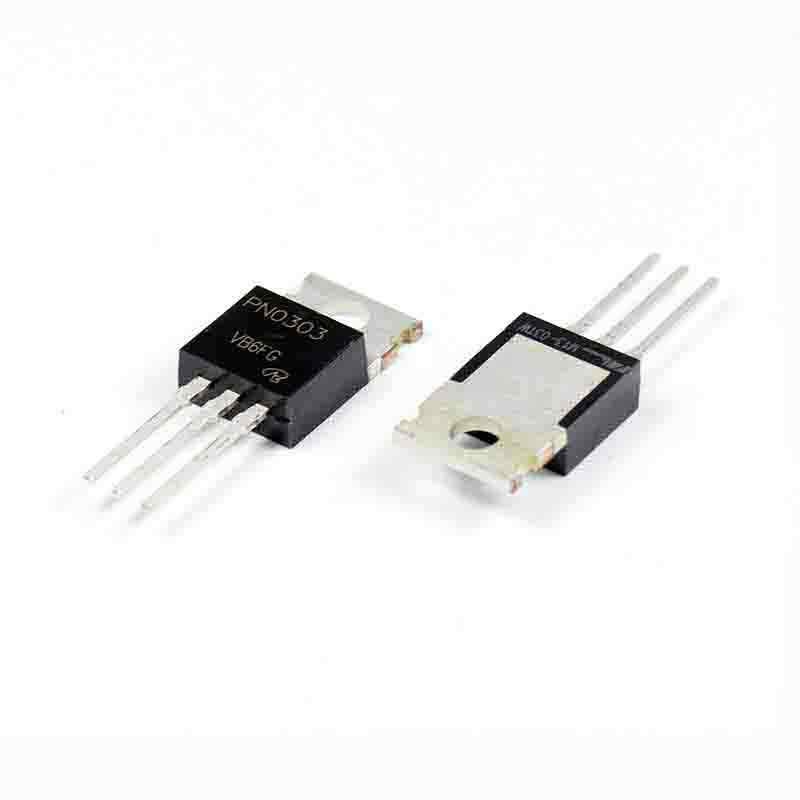

SPP100N03S2-03 P-TO220AB MOSFET N-CH 30V 100A TO-220AB

Brand: Infineon Technologies

Product Code: #889592

Availability:In stock

$2.61 2.61

Qty

Ask about this product
SPP100N03S2-03 DescriptionSPP100N03S2-03 Datasheet
FET Type MOSFET N-Channel Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25 C 100A
Rds On (Max) @ Id Vgs 3.3 mOhm @ 80A 10V
Vgs(th) (Max) @ Id 4V @ 250?A
Gate Charge (Qg) @ Vgs 150nC @ 10V
Input Capacitance (Ciss) @ Vds 7020pF @ 25V
Power - Max 300W
Mounting Type Through Hole
Supplier Device Package P-TO220AB
